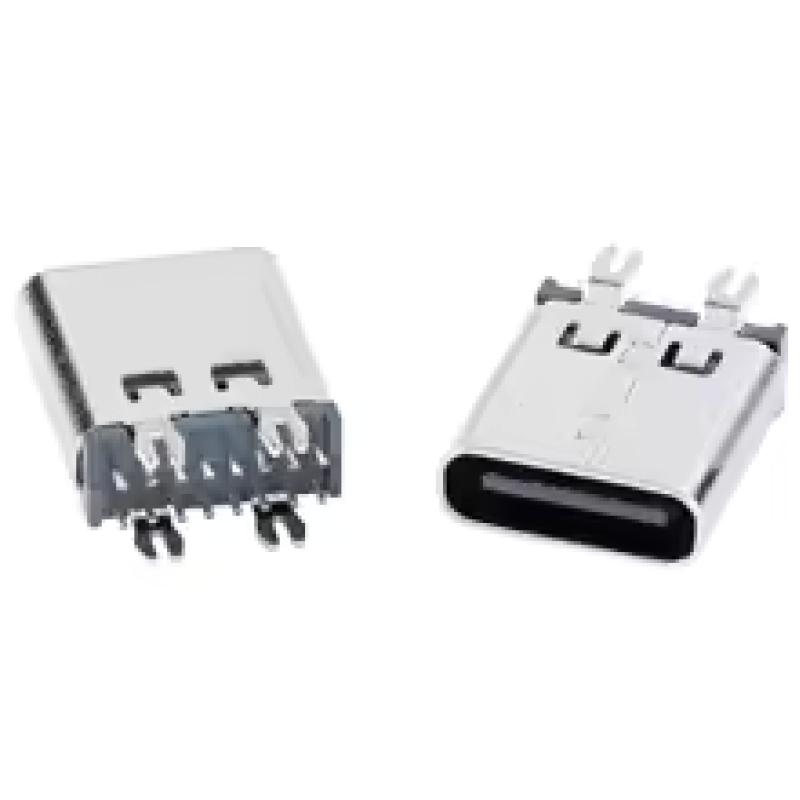

TYPE C USB Technical Requirements:

1. Electrical performance

1.1. Rated current 3A

1.2 Rated voltage: 5V

1.2. Withstand voltage: 500 V (AC) for 1 minute

1.3. Contact impedance: 40m9 Max

The impedance change after reliability and environmental testing shall not exceed 10m Ω

1. 4. Insulation impedance: 100 M Ω Min

2. Mechanical properties

2.1 Insertion force: 5-20N Pullout force: 6-20N

2.2 Life test 5000 Max

2.3 Thrust: 50N min

2.4 Peel strength: 150N min

2.5 Twist strength: 0.75Nm

3. Material requirements

4.1 Rubber core material: LCP

4.2 Shell material: SUS304

4.3 Terminal material: C2680

4. Salt spray requirement: 24 hours

5. Working temperature: -20 ° C~85 ° C

18P
